Aluminium Tile Insert Shower Drain – Gun Metal

Upgrade your bathroom or wet area with the premium Aluminium Slimline Tile Insert Shower Drain in sleek Gun Metal. Crafted from triple-anodised aluminium, this drain combines strength, durability, and a modern aesthetic. Lightweight yet robust, it provides a cost-effective and versatile solution for indoor and outdoor wet areas while complementing any designer space.

Key Features:

• Triple-anodised aluminium – rustproof, durable, and lightweight
• Size: 600–3000mm (L) x 100mm (W) x 21mm (H) – customizable to fit your space
• Two waste sizes available: 40mm and 80mm
• Supports tiles up to 10mm thick for a flush finish
• Top grate easily removable for quick and easy cleaning
• Flexible installation – waste can be positioned anywhere along the bottom tray
• No welding required; simple, cost-effective installation
• Perfect for both indoor and outdoor wet areas
• Lifetime rustproof warranty

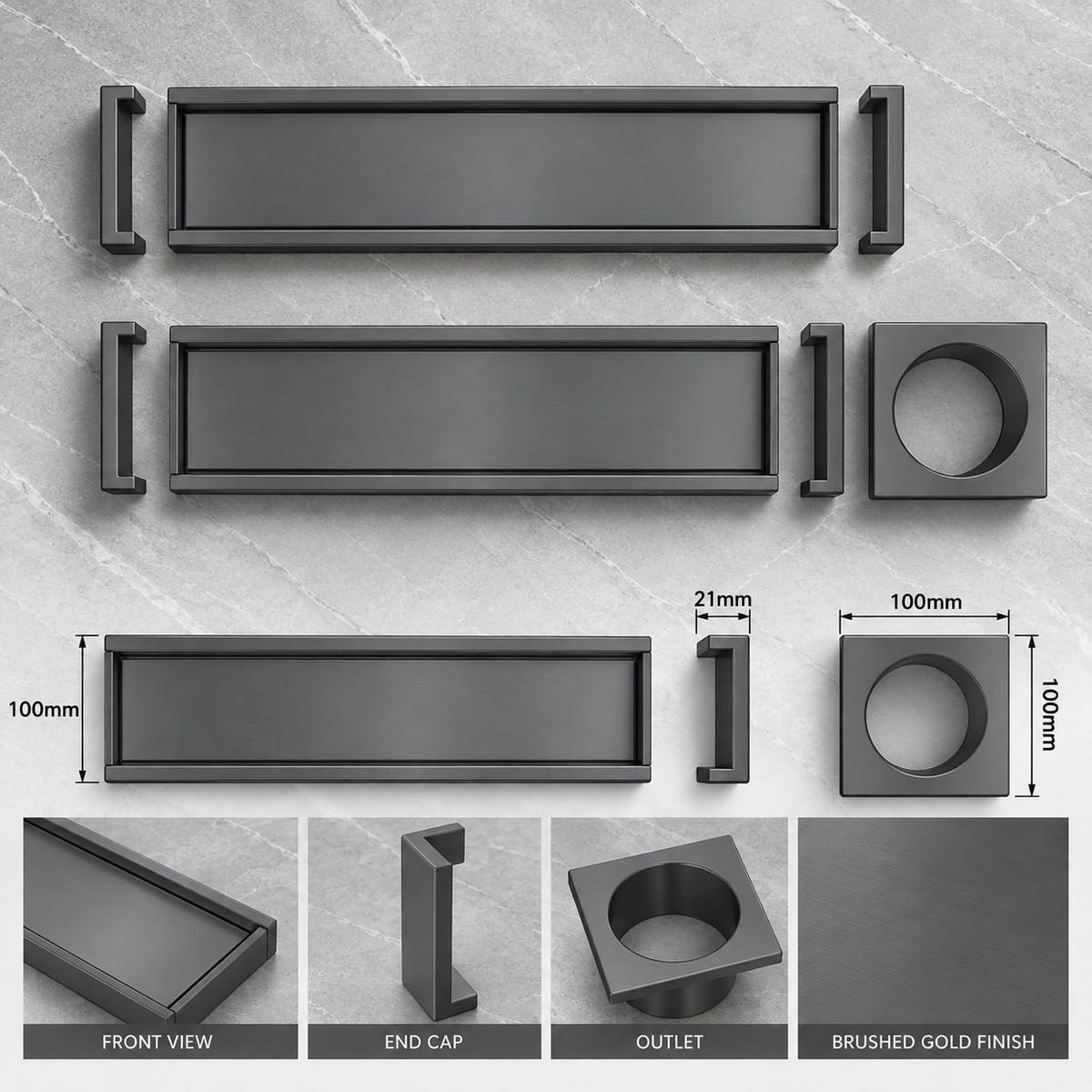

Package Includes:

• 1 x Shower Grate
• 1 x Waste
• 1 pair of End Caps

Cutting & Assembly Instructions:

1. Cut the bottom tray 3mm shorter than desired length to allow end caps to fit.
2. Cut the top grate 1mm shorter than the bottom tray for a smooth roll-in fit.
3. Drill the pop waste hole at the required position using the appropriate hole saw.
4. Insert end caps into the bottom tray and secure with silicone inside the tray.
5. Apply silicone around the pop waste lip and attach to the underside of the bottom tray.

Combine functionality, style, and durability with the Aluminium Slimline Tile Insert Shower Drain – Gun Metal. Perfect for designer bathrooms, this versatile drain ensures a sleek, modern, and hygienic solution for your wet areas.
